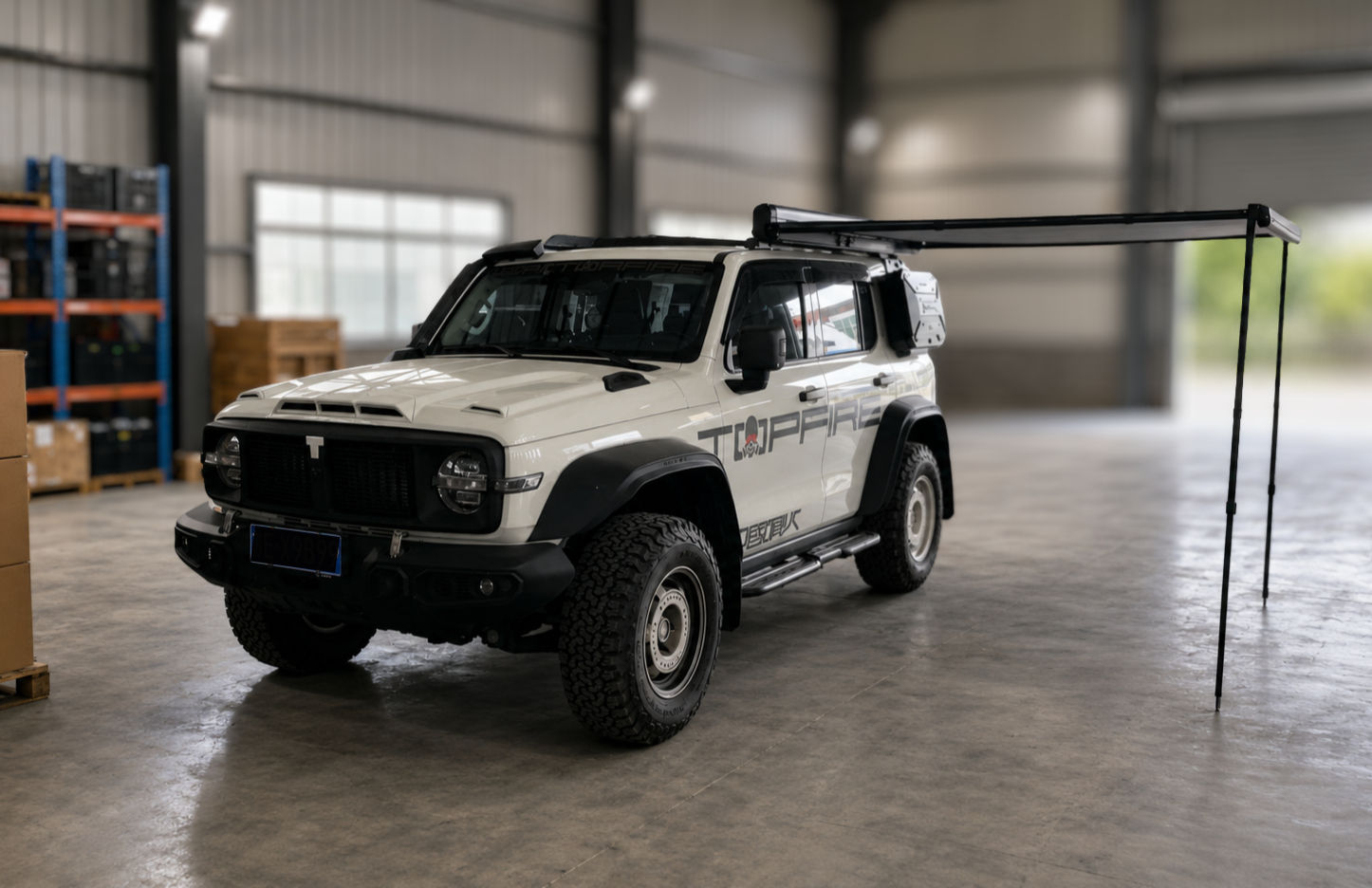

AE-S Solar 2.2m Solar PV Awning
The Ultimate Fusion of Shade and Power for Off-Grid Living
The AE-S Solar 2.2m Solar PV Awning integrates advanced Japanese CIGS-ETFE flexible solar technology into a proven rear-winding aluminium awning system — delivering both reliable shade and high-performance solar generation in one streamlined solution.
Producing up to 440W of peak solar output while providing 2.0m x 2.0m retractable shade coverage, it is suitable for 4x4 or Utility Vehicles to provide shade and power. Casing dimension of 2210mm (L) x 110mm( W) x 166mm (H) and attaches via supplied fixings (minimal tools required). Canopy either fixes back to vehicle wall with clips provided or via extending steel poles which fit neatly back into the casing. Front of awning has channel facility add more screens such as fly / privacy shade if required.
This is more than an awning — it’s a smarter, all-in-one solution for powering modern off-grid travel.
Technical Specifications
Electrical Parameters At STC 25ºC at 1000w/m²
Parameter | Specification |
Rated Maximum Power (Pmax) | 440 (+/-7%) |
Open Circuit Voltage (Voc) | 43.2V |
Maximum Power Voltage (Vmp) | 34.5V |
Short Circuit Current (Isc) | 19.5A |
Maximum Power Current (Imp) | 15.2A |
Cell Efficiency | >15% |
Temperature Coefficient of Isc | -0.03 |
Temperature Coefficient of Voc | -0.33 |
Temperature Coefficient of Pmax | -0.43 |
Rolling Diameter | 6.5 cm |
Fire Rating | Class B |
IP Rating | IP68 |
Weight | <1 kg/m² |
Dimensions (W x L) | 2.0m x 2.0m |
Thickness | <1 mm |
Peel Force Between Adhesive | >15 N/cm |
Operating Temperature | -40°C to +85°C |
Number of Cells | 168 |
*** Price excludes freight.
Shipping costs will be calculated and provided upon receipt of order.
Mackay locals can use the code MKYLOCAL for free pick up.
